In depth look at whats available for extruders, build types and installs.
lots of information and research to help guide you through the buy or build
process. The forum is building a hi-temp 3d printer that utilizes a pellet extruder built from plans and acquired parts.
This info from mahor design
Firmware configuration
Thermistor
#define TEMP_SENSOR_0 1
Steps per millimeter of the motor (1/16 recommended)
#define DEFAULT_AXIS_STEPS_PER_UNIT { 80, 80, 400, 305}
G-code command: M92 E305
PID calibration
Autotune command via Pronterface or Repetier
G-code command: M303 E0 S200
#define DEFAULT_Kp 39.24
#define DEFAULT_Ki 5.38
#define DEFAULT_Kd 71.52
G-code command: M301 P39.24 I5.38 D71.52
https://mahor.xyz/wiki/pellet-extruder-wiki/
DUET3D
M305 P1 T100000 B4138 R4700; Thermistor set
M143 H1 S300; max temp
M563 P0 S "v4" D0 H1; Define tool 0
M92 E720; steps *
M906 E1680.00; AMPS
M302 P1; cold extrusion SR
M570 H1 P130 T150; heater fault
M303 E0 S200; autotune PID
M301 P39.24 I5.38 D71.52; define PID
* STEPS PER UNIT
1/16 microstepings
ABS-HI 720
ABS-HF. 610
PLA 405
The extruder from high temp is different, it has a different screw and barrel so this info is for referance only to establish a working setup, once established I will post

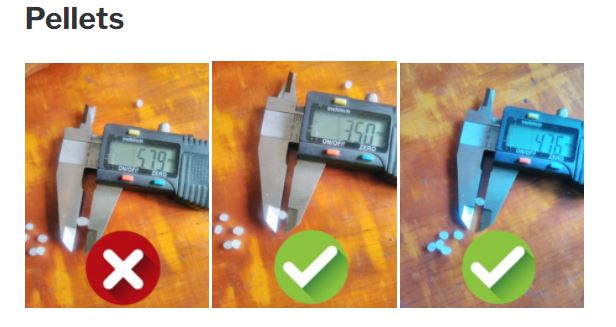

.137 to .187
Laminator Configuration
Filament settings
- Diameter = 1.75
- Extrusion multiplier = 1 *
* Depending on the type of plastic or pellet size, the flow may vary so it will be necessary to adjust it using the extrusion factor.
This is the progress i made with the build i made from the high temp printer plans
This was a BIG achievement
This is with a .4 head and the recommendations are using a .8
That will be my next attempt
also i am using some pellets that have not been conditioned, there are recommendations on handling the
the media, i think that will make a big difference also
